Santec manufacture wide range of machines for various industrial applications. Now these high quality machines are readily available in “Ready Stock” hence now no need to wait for these machines for longer delivery schedule.

These machines are ready for immediate shipments. Technical details are given in front of the pictures. If need any further details, please do not hesitate to contact us.

Hydraulic Double Action Deep Draw Press�120 + 80 Tons Capacity

Technical Specifications
Type Vertical Four� Columns� Type Structure, Frame is fabricated out of ultrasonically tested Steel Plates duly welded with suitable reinforcements to give strength & load during operation.
Capacity Of The Main Ram 120 MT (1no.)
No. Of Cylinders / Ram 1 no. main Cylinder + 2 nos. side Jacking Cylinders for� blank� holder�s� fast down &� fast� up movement + 6 nos. blank� holder� cylinders fixed� at� equal distance for uniform distribution of blank holder force or better clamping of sheet + 1 no. ejector cylinder .
Bed Size or Bolster Plate 1100 mm (LR) x 900 mm (FB)
Bore (piston) Dia. of Main Cyl. 11"
Stroke Length Of Main Cylinder 500 mm (Adjustable)
Open Daylight 700 mm
Blank Holder Cylinder's Capacity 80 Tons
Stroke Length Of Blank Holder Cylinders: 300 mm
Advanced or Approach Speed 90 - 100 mm/sec. (Approx.)
Drawing Speed 8 - 10 mm/sec. (Approx.)
Return Speed 120 - 150 mm/sec. (Approx.)
Working Pressure 200� to 210 kg/cm2
Electric Motor 15 H.P.,3phase,1440 R.P.M., ABB Make
Pump Double Pumps for high & low speeds
Operation PUSH BUTTON OPTD. WITH�ELECTRICAL�CONTROL PANEL.
Both auto /manual mode of operation
PLC - Operated control panel
PLC Omron / Siemens make with coloured touch screen for user friendly operation.
Weight Of The Press 6 - 7 Tons( Approx.)
T-Slots Size T-20

Santec India


Hydraulic SMC Moulding Press (150 Tons)

Technical Specifications
Type Fabricated 4 columns type Press with Down stroking ram movement.
Capacity Of The Main Ram 150 Tons (1 no. main cylinder + 2 Nos. double acting type jacking cylinders for fast approach, & fast return speed .
Pull Back Force 15 Tons
Moving Platen guides Phosphorous Bronze liners / bushes Specially designed at four corners of the slide with Lubrication Arrangement.
Piston Size (Bore Size) Main Rams 310 mm - Approx.
Ram Movements Downstroking
Day Light 700 mm
Stroke Length of main cylinder 500 Tons
Shut Height 200 mm
Platen Size 750 mm (Left to right) x 750 mm (Front to Back)
Mould Mounting Situation T � Slots (T-16)


Slide Or Mold Closing & Opening Speeds
Fast Approach Speed 60 � 70 mm/sec.
Pressing Speed 6 to 8 mm/sec.
Slow Mold Opening Speed 0 - 20 mm/sec.
Fast Return Speed 70 - 80 mm/sec.


Bottom Ejector Cylinder
Force Of Ejector 10 Tons (Approx.)
Bore Diameter 80 mm
Stroke Length 150 mm
Upward Speed 0 - 40 mm/sec.
Downward Speed 0 - 50 mm/sec.
Bottom Plate Ejection Hole 50 mm.
Position Of Ejector Rod End 50 mm below the plate level


General
Electric Motor 7.5 H.P (main)., 3f, 1440 R.P.M, 415V, ABB make
Pump Fixed Displacement Double pump for high & low speeds & pressure � Veljan make
PLC Omron / Siemens make PLC with touch screen display (MMI) for User -friendly operation.

Santec India


Hydraulic SMC Moulding Press (250 Tons)

Technical Specifications
Type Four Nos. Heavy duty Fabricated Columns type Press with Down stroking ram movement.
Capacity Of The Main Ram 250 Tons (1 no. main cylinder + 2 Nos. double acting type Jacking cylinders for fast approach & fast return speed.
Pull Back Force 20 Tons
Moving Platen guides Phosphorous Bronze liners Specially designed GIB Guiding Arrangement at four corners of the slide with Lubrication Arrangement.
Piston Size (Bore Size) Main Rams 400 mm - Approx
Ram Movements Downstroking
Day Light 1100 mm
Stroke Length of main cylinder 80 Tons
Stroke Length Of Blank Holder Cylinders: 800 mm
Shut Height 300 mm
Platen Size 1400 mm (Left to right) x 1000mm (Front to Back)
Mould Mounting Situation T - Slots (T-20) - Straight slots at equal distance


Slide Or Mold Closing & Opening Speeds
Fast Approach Speed 130 - 150 mm/sec
Pressing Speed 6 to 8 mm/sec.
Slow Mold Opening Speed 15 � 20 mm/sec.
Fast Return Speed 160 mm/sec.


Bottom Ejector Cylinder
Force Of Ejector 10 Tons (Approx.)
Bore Diameter 100 mm
Stroke Length 200 mm
Upward Speed 40 mm/sec.
Downward Speed 50 mm/sec.
Bottom Plate Ejection Hole 50 mm.
Position Of Ejector Rod End 50 mm below the plate level


General
Electric Motor 20 H.P (main ). , 3f, 1440 R.P.M, 415V, ABB make
Pump Fixed Displacement Double pump for high & low speeds & pressure
PLC Omron / Siemens make PLC with touch screen display (MMI) for User -friendly operation.

Santec India


Hydraulic SMC Moulding Press (600 Tons)

Technical Specifications
Type Two Nos. Heavy duty Fabricated Columns type Press with Down stroking ram movement.
Capacity Of The Main Ram 600 Tons (2 nos. main cylinders + 2 nos. double acting type Jacking cylinders for fast approach & fast return speed.
Pull Back Force 60 Tons
Moving Platen guides Phosphorous Bronze liners Specially designed GIB Guiding Arrangement at four corners of the slide with Lubrication Arrangement.
Piston Size (Bore Size) Main Rams 390 mm (each) - 2nos.
Ram Movements Downstroking
Day Light 1500 mm
Stroke Length of main cylinder 1050 Tons
Platen Size 2000 mm (Left to right) x 1800mm (Front to Back)
Mould Mounting Situation T � Slots (T-22) - Straight slots at equal distance


Slide Or Mold Closing & Opening Speeds
Fast Approach Speed 150 - 200 mm/sec.
Pressing Speed 6 to 8 mm/sec.
Slow Mold Opening Speed 15 � 20 mm/sec.
Fast Return Speed 160 - 210 mm/sec.


Bottom Ejector Cylinder
Force Of Ejector 40 Tons (Approx.) with 4 nos. pins at multiple points
Bore Diameter 100 mm
Stroke Length 250 mm
Upward Speed 40 mm/sec.
Downward Speed 50 mm/sec.


General
Electric Motor 60 H.P (main), 3f, 1440 R.P.M, 415V, ABB make
Pump Fixed Displacement Double pump for high & low speeds & pressure
PLC Omron / Siemens make PLC with touch screen display (MMI) for User � friendly operation.

Santec India

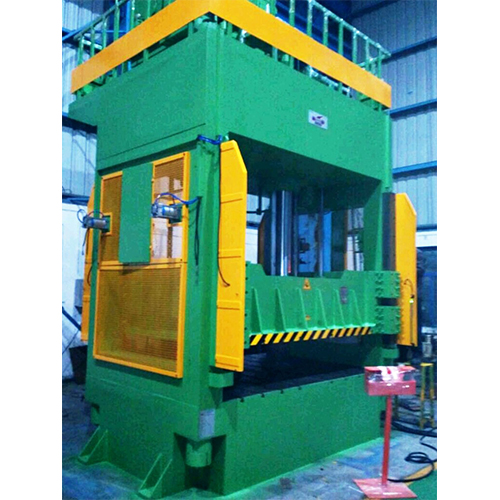

250 TONS CAPACITY� HYDRAULIC� PRESS� - H FRAME TYPE

Technical Specifications
Type 2�Nos. Fabricated�column type�(Downstroking�Ram�Movement) with Hydraulic Locking type tie rods.
Total Capacity of The Ram 250 Tons
Return Capacity 20 x 2 = 40 tons (return cylinder mechnisam must be single acting only for pull back forcing.
Main Cylinder 2 nos.� main cylinders double� acting� type� with 2 nos. Side cylinders - double acting type.
PISTON Size (Bore size)-Main Cylinder: 280 mm� (Approx.) - each
Ram Diameter 200 mm
Ram Movements Down stroking
Day Light 1400 mm
Stroke Length Of Main Cylinder 1000 mm
Shut Height 400 mm
Heated platen Size 2400 mm (L to R) x 1800 mm (F to B) (Thickness of bottom table 90 mm / Top plate 80 mm) with through T - slots.
Pressure�Holding�Time 0 to 10 minutes�(Adjustable )
Electric Motor 20 + 5 + 2 h.p., 3phase , 1440 R.P.M , ABB make
Pump Double Pump for� High & Low pressure.
Operation Double Pump for� High & Low pressure.
Push Button operated.
Both Auto/Inching Mode of Operations
PLC Siemens make but without HMI
Approach Speed 200 mm/sec.
Pressing Speed 5 mm/sec.
Return Speed 120 mm/sec.
Max. Working Pressure 150 kg/cm2
Max. Working Height Approx. 700 mm
