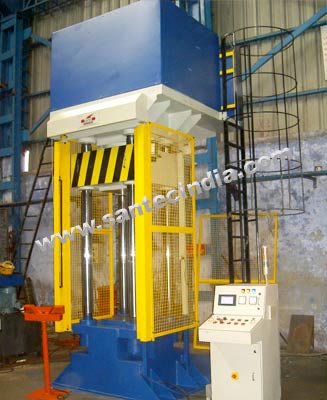

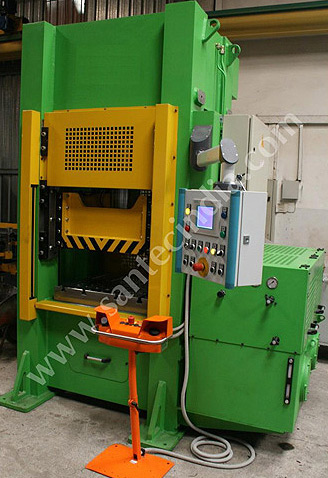

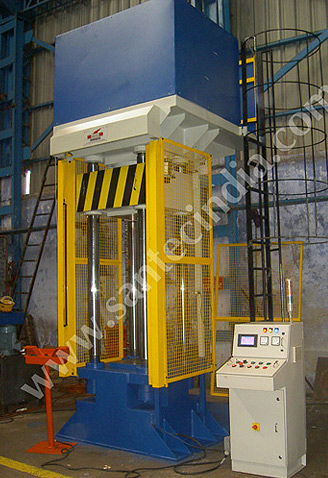

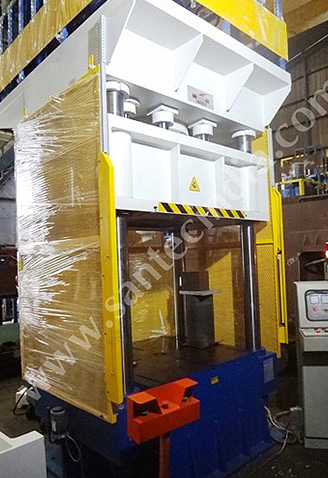

Counter Drawing or Reverse Drawing Presses

Santec Exim Pvt. Ltd.

Overview

This innovative concept is an energy saving & cost effective, high production & highly suitable for long draw depth components i.e. Geyser body etc. As shown below, the top die is attached to the slide. The lower die is mounted on the press bed with the blank holder. The punch is located in an opening in the center of the press bed on the draw cushion cylinder.

In this operation, once again, a single - Action press with a draw cushion is used. Pushing deformation, the blank holding force is transferred via the slide from above & the draw punch force acts from below through the active draw cushion. The punch forms the post by means of its upward movement while the blank holder rests on the die.

The active Counter drawing combines the advantages of static blank holding & the low power usage of double action dies with the advantage of a single - Action die. Admittedly, it is necessary to have a special modification of the dies for performing this operation, since the forces operate in the opposite direction to those of a normal single action deep drawing press with draw cushion. Thus, these dies can not be installed in a normal single - Action press.

Product Details:
Minimum Order Quantity1 Piece
Max Force or Load0-30 ton, 30-60 ton, 60-90 ton, 90-120 ton, 120-150 ton, >150 ton
BrandSantec
Control TypeCNC, Non-CNC
Automatic GradeAutomatic, Semi-Automatic, Manual
Country of OriginMade in India
Phase3 Phase
Voltage415 Volt
ColorAs per customer requirement


Characteristic Mechanical Presses Hydraulic Presses
Force Variable (depends on slide position) Relatively constant (does not depend upon slide position)
Stroke length Limited Capable of long stroke 100” or more
Slide Speed Higher Speed Capability Slower pressing speeds with rapid advance & retraction variable speeds uniform throughout stroke
Control Full Stroke generally required before reversal Full Stroke generally required before reversal
Applications Blanking, Shearing, Piercing, Drawing only upto 4” inches Deep Drawing, Straightening etc.

Counter Drawing or Reverse Drawing Presses
