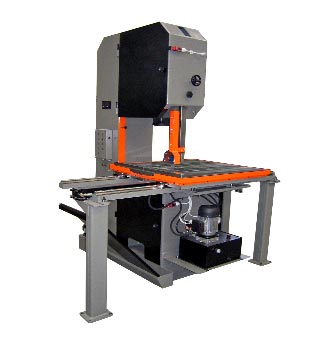

Vertical Type Bandsaw Machines

Application
FAQ
Technical Specifications

Overview

COBRA Plate - moving vertical bandsaw design allows easy loading and unloading for the material. After securing material in place, the bed plate moves with material smoothly into cutting area. The design is ideal for cutting block, plate, or mold steel.Blade changing is easy and convenient.

Salient Features

  • Convenient and Safe material on/off loading.
  • Hydraulic control enables fast and easy Guide Arm positioning.
  • Infinitely variable feed rate and blade speed control.
  • Hydraulically activated tungsten carbide inserts guide blade to achieve straight cuts and long life.
  • Easy-to-operate control console is conveniently located with full view of cutting work.
  • Hydraulic chip auger located directly underneath cutting area conveys metal chips out into collection bin.
  • Blade monitoring control with automatic blade breakage sensor and blade speed display.
  • Powered wire brush effectively cleans blade for longer blade life and improves cutting performance.


Vertical Type Bandsaw Machines

next

previous


Technical Specifications
Machine Models CVB – 150 ( 50X 50 ) CVB – 150 ( 100X 50) CVB – 300 ( 50X 50)
Max.  Job  Height in mm 150 150 300
Numbers of wheels 2 2 2
Work table operation Worm gear drive Worm gear drive Worm gear drive
Table Size  (L x W in mm) 500 x 500 1000 x500 500 x 500
Table Tilt RH / LH-(Optional) NA NA NA
Blade Speed in mtr/min. 20-90 20-90 22-130
Blade Size (L x W x T in mm) 27 x 0.9 27 x 0.9 27 x 0.9
Blade  Tension MANUAL manual manual
Saw Motor Capacity in HP 3 3 3
Coolant Motor Capacity in HP 0.16 0.16 0.04
Feeding motor ( D.C. ) 0.37 KW 0.55 KW 0.55 kw
Approx Weight in Kg 2000 2200 2500


* IMPORTANT NOTE * :
(1) Due to continous improvement , specifications & designs are subject to change without prior notice.
(2) Optional accessories shown in machine photographs are at extra cost.
