Energy Saving Series Plastic Injeciton Molding Machines

A.) High volumetric efficiency is more than 95%.

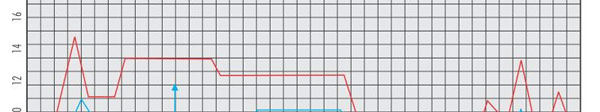

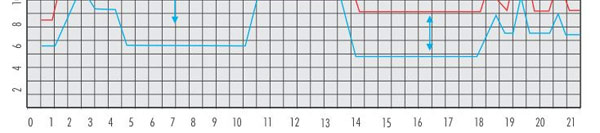

B.) Power consumption is 30% less than machines haying fixed displacement pump.

C.) Cooling water requirement of hydraulic oil is between 1/3 and 1/2 of fixed pump requirement due to without extra hydraulic oil overflow. Therefore there is longer life for the seal of pump than fixed pump.

D.) On the basis of proportional technology, the combination of electrical and sensor technology reaches the success of dosed loop variable pump. Through the control of pressure and flow by proportional valve, and continual monitoring on pressure and flow by pressure sensor and plate angle sensor, it leads precise pressure and flow to save energy.

E.) There is great characteristic curve on input voltage & pressure and almost direct proportion on the characteristic curve on input voltage & flow. Closed loop control is adopted so pressure and flow can be adjusted well by voltage. Energy saving become great due to high precision control and high respond.

Injection Unit

• Cold start proteciton
• Four injection speed/pressure steps
• Three holding pressure steps
• PID temperature controlled
• Screw decompression with open nozzle injection carrier with lubrication free slideway

Clamping Unit

• Five mold closing speed/pressure steps
• Four mold opening speed/pressure steps
• Low-pressure mold protection
• Hydraulic safety device
• Electric safety device
• Double side safety guards
• Auto mold thickness adjustment
• Core pull control
• Air ejection
• 5 points vibrating hydraulic ejector
• Auto lubrication device

Control System

• Storage for 120 sets of molding data
• One week timer for automatic start and heating
• Monitor with power saving function
• Malfunction diagnostic with alarm message
• Real-Time cycle display
• Quality control system according to shot weight
• Temperature and injection position cushion display
• Special function on requested

Others

• Energy saving hydraulic system
• Hydraulic system with lumped circuit
• Precise hydraulic propositional valve
• Water distributor
